New Castle 16×12 Wood Storage Shed Kit – ALL Pre-Cut

Our New Castle 16×12 wood shed kit from Best Barns is the perfect outdoor storage building! It provides enormous storage space with a 16 foot wide entrance side that runs 12 foot deep. The New Castle shed is large enough to drive in your riding mower, small tractor or atv into and still have plenty of room to fit the rest of your yard tools and lawn equipment inside. The super wide door opening provides 5′ 4″ of clearance!

Everything is Pre-Cut!

• Pre-cut roof trusses for fast and accurate assembly
• Pre-cut Wood Gussets
• Pre-cut wall framing
• Pre-cut exterior siding for an accurate fit
• Pre-cut roof sheathing
• Pre-cut trim for a perfect fit
• Pre-built doors

Heavy Duty Truss System:

• 40 pounds per square foot snow load
• 120 miles per hour wind rating

Siding is Pre-Primed and Ready to Paint:

• Siding included – 3/8″ Louisiana Pacific Smart side Exterior Paneling
• Constructed of wood strands, pressed into a resin saturated substrate superior to plywood
• Primed and ready for your finishing coat of paint!
• Pre-treated with Composibor to prevent fungal decay and insects
• 50 year limited warranty!

Pre-Built Doors:

• Extra wide doors are now pre-built and ready to hang!
• 2×4 back frame to prevent warping

All required hardware: door hinges, latch, hurricane straps for trusses, nails, glue for gussets and detailed instruction manual included. Paint, shingles and roof edge are provided by owner / not included.

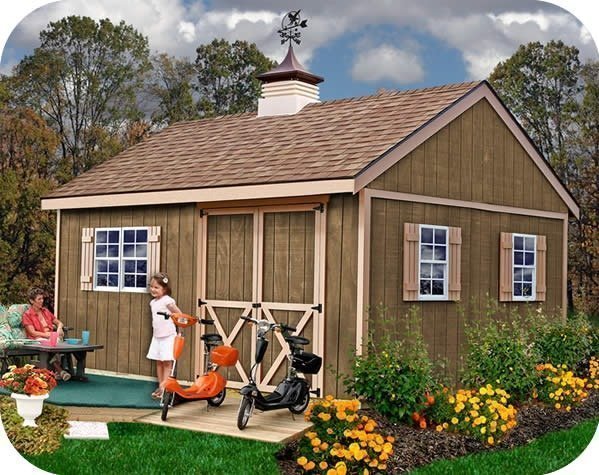

This shed is pictured with 4 optional single hung windows with shutters, gable window and cupola not included. Customize your shed and ADD options at the bottom of this page.

New Castle 16′ x 12′ Shed Dimensions:

• 7′ 3″ of headroom inside!
• Door measures 5′ 4″W x 6’H
• See diagram below!


Optional Wood Floor

Floor not included; Add a wood floor kit to your shed to give it a finished look!

Designed specifically for your new storage building. Adding a wood floor provides a dry storage area and raises the building above the ground protecting it from damaging moisture. Included in the deluxe floor kit are 4×4 treated runners, 2×4 treated joists (spaced 16″ on center), 3/4″ Plywood flooring and nails. The extra 4×4 runners add additional support to the floor joists and allows you to build your shed directly on the ground or grass. The 4×4’s raise the foundation above the ground for air flow that will eliminate moisture.

The material is not pre-cut and will require the customer to make simple straight cuts. The flooring package will be delivered before your shed by a local lumber dealer. They will call to make delivery arrangements and someone must be there to receive and sign.
